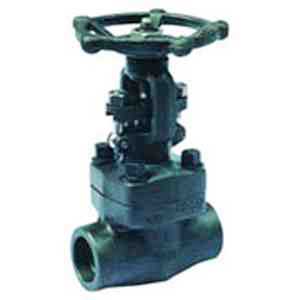

Forged Gate Valve
We have achieved a position of repute in the nation as a major Manufacturer and Supplier of Forged Gate Valve. It has the bolted bonnet construction whose body and bonnet are made from quality forgings. Solid taper wedge and shoulder seated renewable seat ring for positive seating and leak tightness. It is available in either threaded or socket weld ends. Forged Gate Valve streamlined flow passages designed to minimize pressure losses and erosion.

Specifications
Type
Bolted Bonnet / Welded Bonnet
MOC
Forged Steel (A 105 / F 11 / F 22 / S.S. 304 / S.S. 316 )
Trim
13 % Cr. Steel / S.S. 304 / S.S. 316 / Stellited above class 1500
Ends
Screwed / Socked weld / Flanged (Weld neck type)
Rating
Class 800 / Class 1500 / Class 2500
Mfg. Code
API 602 / BS 5352
Test
API 598 / BS 5146
Operation
Hand wheel , Electric Actuator
Size
06 MM to 50 MM
