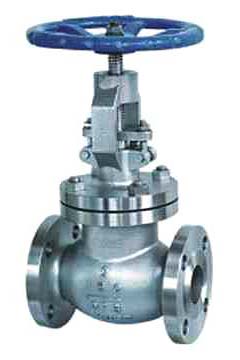

Cast Globe Valve
Cast Globe Valve of superior quality is available with us. The Cast Globe Valve is fabricated with cast steel to suit the functionality and requirements of the clients. The Cast Globe Valves are designed for structural stability, mechanical strength and safe weld ability. Magnetic particle inspection is carried out for special applications. The Cast Globe Valves are Precision machined to suit various industrial uses.

Features
Uniform wall thickness
Smooth flowing contours
Generous fillet radius
Prevent stress concentrations

Used For
Power plants
Fertilizer plants
Oil Gas Pipelines
Steam
Hydraulic applications

Specifications
Type
Outside screw & yoke, Bolted Bonnet, Rising stem
MOC
Cast Iron (IS 210 Gr. FG 200), Cast Carbon Steel (ASTM A 216 GR. WCB), Cast Alloy Steel (ASTM A 217 GR. WC 6/ WC 9) Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M) Alloy Stainless Steel (ASTM A 351 GR. CF 3 / CF 3M)
Trim
13 % Cr. Steel / S.S. 304 / S.S. 316 / Stellited above class 600
Ends
Flanged / Butt Weld
Rating
Class 150 , 300, 600, 900 , 1500 , ND 16, ND25, ND40, ND64
Mfg. Code
BS 5152 / BS 1873
Test
API 598 / BS 6755 PART I
Operation
Hand wheel, Gear, Electric Actuator
Size
For 150 # ,300 #,ND 16, ND 25,ND 40 - 25 MM to 300 MM
600 # to 1500 # - 50 MM to 150 MM
