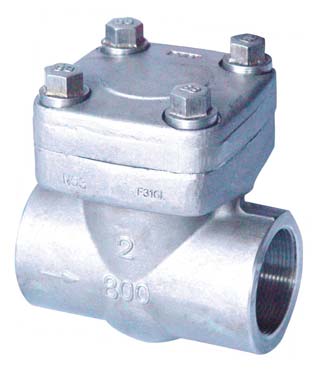

Forged Check Valve
We have achieved a position of repute in the nation as a major Manufacturer and Supplier of Forged Check Valve. It has the bolted bonnet construction whose body and bonnet are made from quality forgings. The valve has uniquely designed piston lift check valve incorporating self cushioning effect. Taper plug type disc and shoulder seated renewable seat ring for positive seating and leak tightness. It is available in either threaded or socket weld ends. Lift Check valve streamlined flow passages designed to minimize pressure losses and erosion. Forged Lift Check valve shall be use for horizontal line only.

Specifications
Type Bolted Bonnet / Welded Bonnet (optional)
MOC Forged Steel (A 105 / F 11 / F 22 / S.S. 304 / S.S. 316/S.S.321/S.S.304 L/S.S.316L)
Trim 13 % Cr. Steel / S.S. 304 / S.S. 316 /S.S.304L/S.S.316L Stellited above class 1500
Ends Screwed / Socked weld / Flanged (Weld neck type)
Rating Class 800 / Class 1500 / Class 2500
Mfg. Code BS 5352
Test BS 5146
Size 06 MM to 50 MM
